304L Stainless Steel Bar
- Commodity name： 304L Stainless Steel Bar
Keyword:
304L Stainless Steel Bar
- PRODUCT DESCRIPTION
-
304L Stainless Steel Bar Description
304L is one of the austenitic stainless steels with a chromium content of at least 18%, a nickel content of at least 8%, and a maximum carbon content of 0.03. 304L stainless steel is an ideal choice for various household and commercial applications, with excellent corrosion resistance, ease of manufacturing and excellent formability. Austenitic stainless steels are also considered to be the easiest to weld among high alloy steels and can be welded by all fusion and resistance welding processes.
Product ParametersProduct Name
304L Stainless Steel Bar
Type
Steel Bar
Outer Diameter
Round Bar
4mm-500mm
Hexagon Bar
18mm-57mm (11/16″ to 2-3/4″)
Square Bar
18mm-47mm (11/16″ to 1-3/4″)
Flat Steel
1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
Scope of Application
Stainless steel bars are used in a variety of industries such as shipbuilding,
Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement,
Heavy earthmoving equipment and construction, etc.
Chemical Composition
C
Si
Mn
Cr
Ni
S
P
≤ 0.03
≤1.0
≤ 2.0
18.0～20.0
8.0～12.0
≤ 0.03
≤ 0.035
Mechanical Properties
Tensile Strength Kb (MPa)
Yield Strength σ0.2 (MPa)
Elongation D5 (%)
Hardness
≥ 520
≥ 205
≥ 40
≤ 187HB ;≤ 90HRB;≤ 200HV
Physical Performance
Density(g/cm³)
Modulus of Elasticity(Gpa)
Coefficient of Thermal Expansion(10-6/°C)
Coefficient of Thermal Conductivity(W/m*K)
Resistivity(ΜΩ. cm)
8.03
193
16.9
16.2
72
|
No |
China | Japan | USA | South Korea | Germany | India | Australia | Taiwan, China | |
|
|
GB |
JIS |
ASTM |
UNS |
KS |
DIN |
BIS |
AS |
CNS |
| Austenitic stainless steel | |||||||||
|
1 |
12Cr17Mn6Ni5N |
SUS201 |
201 |
S20100 |
STS201 |
1.4372 |
10Cr17Mn6Ni4N20 |
201-2 |
201 |
|
2 |
12Cr18Mn9Ni5N |
SUS202 |
202 |
S20200 |
STS202 |
1.4373 |
- |
- |
202 |
|
3 |
12Cr17Ni7 |
SUS301 |
301 |
S20200 |
STS301 |
1.4319 |
10Cr17Ni7 |
301 |
301 |
|
4 |
06Cr19Ni10 |
SUS304 |
304 |
S30400 |
STS304 |
1.4301 |
07Cr18Ni9 |
304 |
304 |
|
5 |
022Cr19Ni10 |
SUS304L |
304L |
S30403 |
STS304L |
1.4306 |
02Cr18Ni11 |
304L |
304L |
|
6 |
06Cr19Ni10N |
SUS304N1 |
304N |
S30451 |
STS304N1 |
1.4315 |
- |
304N1 |
304N1 |
|
7 |
06Cr19Ni9NbN |
SUS304N2 |
XM21 |
S30452 |
STS304N2 |
- |
- |
304N2 |
304N2 |
|
8 |
022Cr19Ni10N |
SUS304LN |
304LN |
S30453 |
STS304LN |
- |
- |
304LN |
304LN |
|
9 |
10Cr18Ni12 |
SUS305 |
305 |
S30500 |
STS305 |
1.4303 |
- |
305 |
305 |
|
10 |
06Cr23Ni13 |
SUS309S |
309S |
S30908 |
STS309S |
1.4833 |
- |
309S |
309S |
|
11 |
06Cr25Ni20 |
SUS310S |
310S |
S31008 |
STS310S |
1.4845 |
- |
310S |
310S |
|
12 |
06Cr17Ni12Mo2 |
SUS316 |
316 |
S31600 |
STS316 |
1.4401 |
04Cr17Ni12Mo2 |
316 |
316 |
|
13 |
06Cr17Ni12Mo2Ti |
SUS316Ti |
316Ti |
S31635 |
- |
1.4571 |
04Cr17Ni12MoTi20 |
316Ti |
316Ti |
|
14 |
022Cr17Ni12Mo2 |
SUS316L |
316L |
S31603 |
STS316L |
1.4404 |
~02Cr17Ni12Mo2 |
316L |
316L |
|
15 |
06Cr17Ni12Mo2N |
SUS316N |
316N |
S31651 |
STS316N |
- |
- |
316N |
316N |
|
16 |
022Cr17Ni13Mo2N |
SUS316LN |
316LN |
S31653 |
STS316LN |
1.4429 |
- |
316LN |
316LN |
|
17 |
06Cr18Ni12Mo2Cu2 |
SUS316J1 |
- |
- |
STS316J1 |
- |
- |
316J1 |
316J1 |
|
18 |
022Cr18Ni14Mo2Cu2 |
SUS316J1L |
- |
- |
STS316J1L |
- |
- |
- |
316J1L |
|
19 |
06Cr19Ni13Mo3 |
SUS317 |
317 |
S31700 |
STS317 |
- |
- |
317 |
317 |
|
20 |
022Cr19Ni13Mo3 |
SUS317L |
317L |
S31703 |
STS317L |
1.4438 |
- |
317L |
317L |
|
21 |
06Cr18Ni11Ti S |
SUS321 |
321 |
S32100 |
STS321 |
1.4541 |
04Cr18Ni10Ti20 |
321 |
321 |
|
22 |
06Cr18Ni11Nb |
SUS347 |
347 |
S34700 |
STS347 |
1.4550 |
04Cr18Ni10Nb40 |
347 |
347 |
| Duplex stainless steel | |||||||||
|
1 |
- |
SUS329J1 |
329 |
S32900 |
STS329J1 |
1.4477 |
- |
329J1 |
- |
|
2 |
022Cr23Ni5Mo3N |
- |
S32205 |
F60 |
- |
1.4462 |
- |
2205 |
2205 |
|
3 |
022Cr25Ni7Mo4N |
- |
S32750 |
F53 |
- |
1.4410 |
- |
2507 |
2507 |
| Ferritic stainless steel | |||||||||
|
1 |
06Crl3Al |
SUS405 |
405 |
S40500 |
STS405 |
1.4002 |
04Cr13 |
405 |
405 |
|
2 |
022Cr11Ti |
SUH409 |
409 |
S40900 |
STS409 |
1.4512 |
- |
409L |
409L |
|
3 |
022Cr12 |
SUS410L |
- |
- |
STS410L |
- |
- |
410L |
410L |
|
4 |
10Cr17 |
SUS430 |
430 |
S43000 |
STS430 |
1.4016 |
05Cr17 |
430 |
430 |
|
5 |
10Cr17Mo |
SUS434 |
434 |
S43400 |
STS434 |
1.4113 |
- |
434 |
434 |
|
6 |
022Cr18NbTi |
- |
- |
S43940 |
- |
1.4509 |
- |
439 |
439 |
|
7 |
019Cr19Mo2NbTi |
SUS444 |
444 |
S44400 |
STS444 |
1.4521 |
- |
444 |
444 |
| Martensitic stainless steel | |||||||||
|
1 |
12Cr12 |
SUS403 |
403 |
S40300 |
STS403 |
- |
- |
403 |
403 |
|
2 |
12Cr13 |
SUS410 |
410 |
S41000 |
STS410 |
1.4006 |
12Cr13 |
410 |
410 |
|
3 |
20Cr13 |
SUS420J1 |
410 |
S42000 |
STS420J1 |
1.4021 |
20Cr13 |
420 |
420J1 |
|
4 |
30Cr13 |
SUS420J2 |
- |
- |
STS420J2 |
1.4028 |
30 Cr13 |
420J2 |
420J2 |
|
5 |
68Cr17 |
SUS440A |
440A |
S44002 |
STS440A |
- |
- |
440A |
440A |

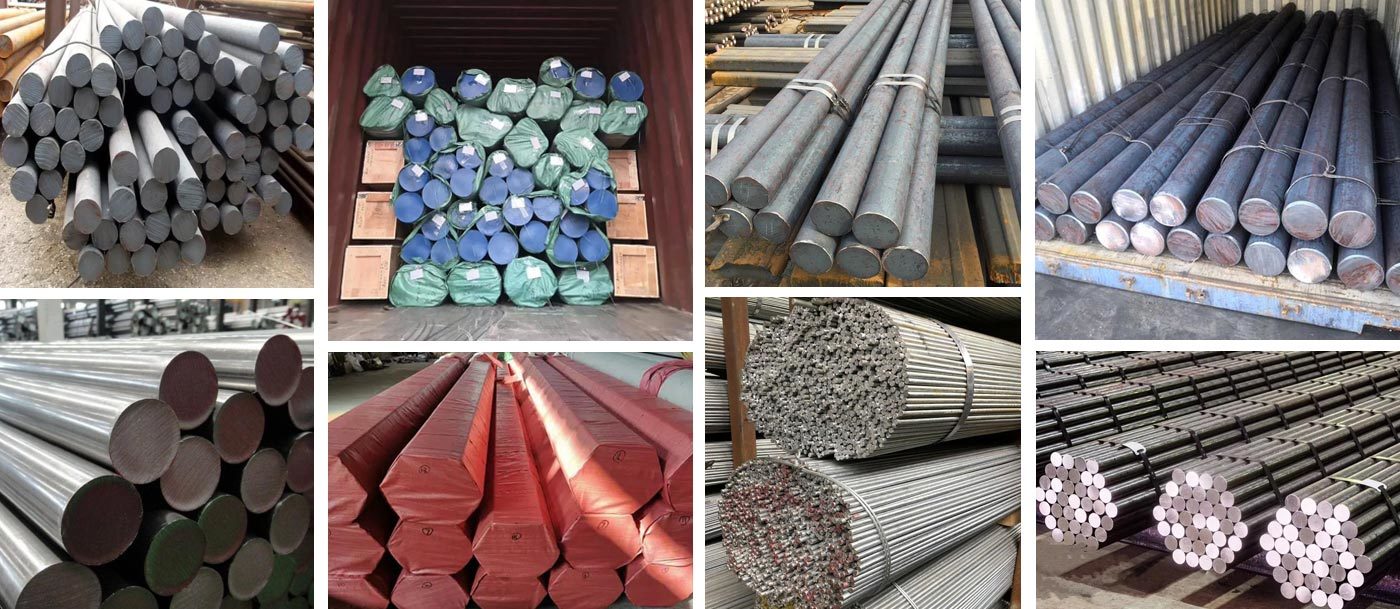

Packing and delivery
It has modern factories and advanced production equipment. The process equipment is automated, intelligent, digital and information-based. It has its own laboratories, testing rooms and independent R&D departments.
Qualifications and Honors
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
