Hot Dip Galvanized Coil
- Commodity name： Hot Dip Galvanized Coil
Keyword:
Hot Dip Galvanized Coil
- PRODUCT DESCRIPTION
-
Hot Dip Galvanized Coil Description
Hot dip galvanizing is to make the molten metal react with the iron substrate to produce an alloy layer, so that the substrate and the coating are combined. Hot galvanizing is to pickle the steel and iron parts first. In order to remove the iron oxide on the surface of the steel and iron parts, after pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank, and then sent into the hot dip plating tank. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.
Hot-dip galvanizing is one of the effective means to delay the environmental corrosion of iron and steel materials, it is the surface of the cleaned, activated iron and steel products immersed in molten zinc, through the reaction and diffusion between iron and zinc, in the iron and steel products surface plating good adhesion of zinc alloy coating. Compared with other metal protection methods, the hot-dip galvanizing process has advantages in the protection characteristics of the combination of physical barrier and electrochemical protection of the coating, the bonding strength of the coating and the substrate, the compactness, durability, maintenance-free and economy of the coating, and its adaptability to the shape and size of the product. At present, hot-dip galvanized products mainly include steel plates, steel strips, steel wires, steel pipes, etc., of which hot-dip galvanized steel plates account for a large proportion.
The production process of hot galvanizing is as follows:
Mother material → degreasing → water washing → pickling → water washing → rinsing → flux solution → drying → hot galvanizing → cooling → inspection → packaging
Scope of ApplicationFor a long time, hot-dip galvanizing process has been favored by people because of its low plating cost, excellent protection characteristics and beautiful appearance. It is widely used in automobile, construction, household appliances, chemical industry, machinery, petroleum, metallurgy, light industry, transportation, electric power, aviation and marine engineering and other fields.
Product Parameters
Product Name
Hot Dip Galvanized Coil
Thickness
0.12mm-3.5mm
Width
600mm-1500mm
Length
508mm/610mm, Support Customization
Standard
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer
Hot Galvanizing: 60-275g/m²
Pre-galvanized: 80-275g/m²
Chemical Composition
Standard
Grade
C
Si
Mn
P
S
Ti
Forcold Forming
Chinese Standard
DX51D+Z
0.12
0.50
0.60
0.100
0.045
0.30
DX52D+Z
0.12
0.50
0.60
0.100
0.045
0.30
DX53D+Z
0.12
0.50
0.60
0.100
0.045
0.30
DX54D+Z
0.12
0.50
0.60
0.100
0.045
0.30
DX56D+Z
0.12
0.50
0.60
0.100
0.045
0.30
DX57D+Z
0.12
0.50
0.60
0.100
0.045
0.30
Forcold Forming
Japanese Standard
SGCC
0.15
0.50
0.80
0.050
0.030
0.025
SGCD1
SGCD20.12
0.100.50
0.500.60
0.450.040
0.0300.030
0.0300.025
0.025SGCD3
0.08
0.50
0.45
0.030
0.030
0.025
SGCD4
0.06
0.50
0.45
0.030
0.030
0.025
For Structure
Japanese Standard
SGC340
0.25
0.50
1.70
0.200
0.035
0.025
SGC400
SGC4400.25
0.250.50
0.501.70
2.000.200
0.2000.035
0.0350.150
0.150SGC490
0.30
0.50
2.00
0.200
0.035
0.025
SGC510
0.30
0.50
2.50
0.200
0.035
0.025
For Structure
AISI Standard
S220GD+Z
0.20
0.60
0.70
0.100
0.045
0.025
S250GD+Z
0.20
0.60
0.70
0.100
0.045
0.025
S280GD+Z
0.20
0.60
0.70
0.100
0.045
0.025
S320GD+Z
0.20
0.60
0.70
0.100
0.045
0.025
S350GD+Z
0.20
0.60
0.70
0.100
0.045
0.150
S550GD+Z
0.20
0.60
0.70
0.100
0.045
0.150
Mechanical Properties
Grade
Yield Strength MPa≥
Tensile Strength MPa≥
Elongation A%≥
DX51D Z/ZM/AZ/AM
240-380
270-500
22
DX52D Z/ZM/AZ/AM
140-300
270-420
26
DX53D Z/ZM/AZ/AM
140-260
270-380
30
DX54D Z/ZM/AZ/AM
120-220
260-350
36
S220GD Z/ZM/AM
220
300
20
S250GD Z/ZM/AZ/AM
250
330
19
S280GD Z/ZM/AM
280
360
18
S300GD A/AM
300
380
18
S320GD Z/ZM/AM
320
390
17
S350GD Z/ZM/AZ/AM
350
420
16
S450GD A/AM
450
480
15
S550GD Z/ZM/AZ/AM
550
550
-

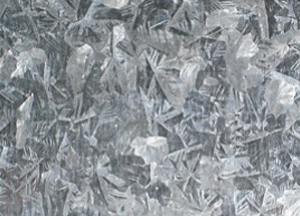

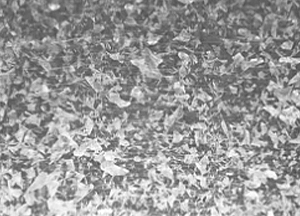

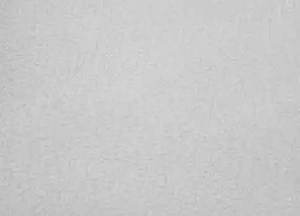

Galvanized Surface Selection
Zero Spangle
Minimized Spangle
Normal Spangle
Large Spangle
Use of The Environment
Recommended Zinc Thickness
Indoor Use
Z10 or Z12 (100g/㎡or 120g/㎡)
Suburbs
Z20 and Painting (200g/㎡)
Urban or Industrial Area
Z27 (270g/㎡) or G90 (US Standard) and painted
Coastal Area
Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted
Punch or Deep Drawing Application
Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping
Surface Treatment Type
Code
Features
Chromic Acid Treatment
C
Good corrosion resistance, suitable for bare state
Chromic Acid Treatment+Oiling
S
Good corrosion resistance
Phosphoric Acid Treatment (Including Sealing Treatment)
P
Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling
Q
Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage
Phosphoric Acid Treatment (Excluding Sealing Treatment)
T
Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling
V
Has a certain corrosion resistance, good paint performance, and prevent rust
Oiling
O
Prevent rust during transportation and storage
No Treatment
M
Suitable for immediate painting
Material Comparison
Chinese Standard
Japan Standard
European Standard
DX51D Z/DC51D Z (CR)
SGCC
DX51D Z
DX52D Z/DC52D Z
SGCD1
DX52D With
DX53D Z/DC53D Z/DX54D Z/DC54D Z
SGCD2/SGCD3
DX53D Z/DX54D Z
S220/250/280/320/350/550GD Z
SGC340/400/440/490/570
S220/250/280/320/350GD Z
DX51D Z/DD51D Z (HR)
SGHC
DX51D Z
Packing and delivery
It has modern factories and advanced production equipment. The process equipment is automated, intelligent, digital and information-based. It has its own laboratories, testing rooms and independent R&D departments.
Qualifications and Honors
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
